CraftBox

* link to Frobobox

This is the computer on the Phoenix. It is an industrial grade computer built in IP66 aluminum box. It is using Ubuntu as operatingsystem and can be accessed via the built in Wifi.

This documentation is updated when changes are made to our CraftBox.

Here is the different configurations for the CraftBox to work in Hohenheim

<task> TITLE: Install 4 Port PCIe card in Ubuntu PRIORITY: High ESTIMATE: ??-maybe several days PROGRESS: 0% ASSIGNED: Claes DESCRIPTION: The driver is outdated, we need to contact the company </task>

<note important>This page is currently being updated</note>

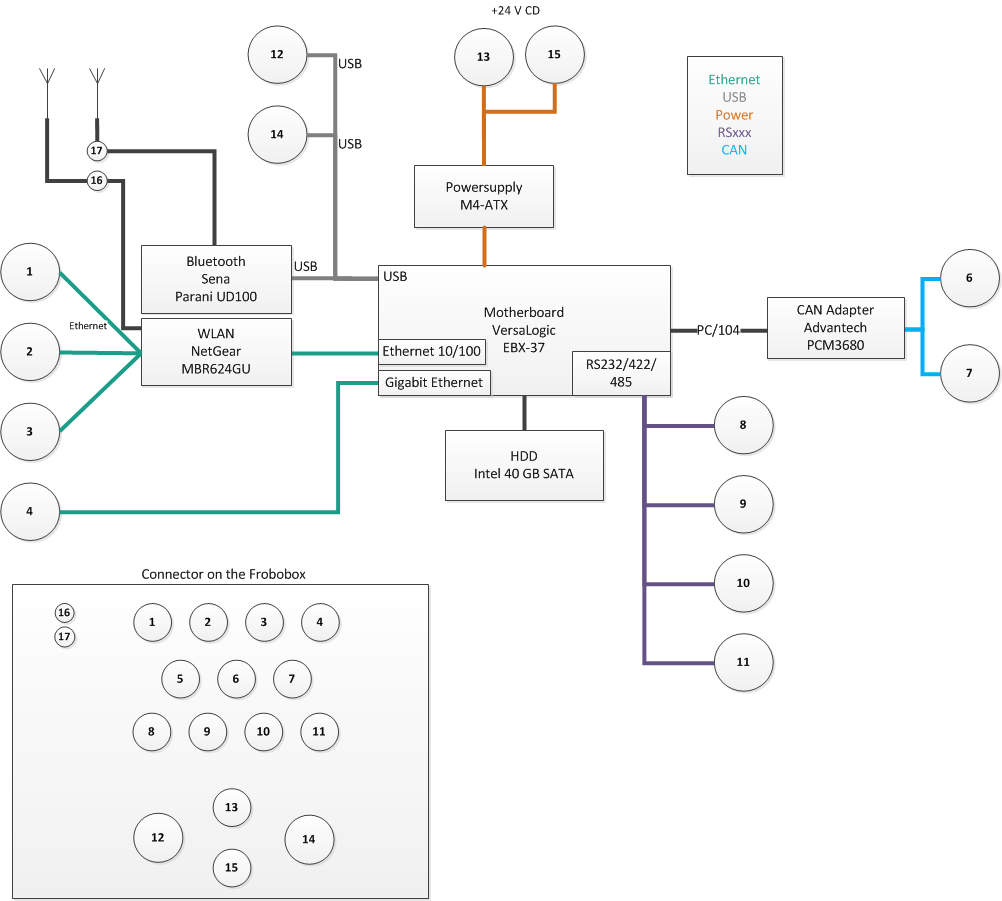

Diagram

<note important>This will be updated soon</note>

Connection List

Connection that are in the computer but currently connected to a plug in the box:

ConnectionFrom
RS422/485Motherboard
2x RS232 PCIe Card
2x RS422/485 PCIe Card

<columns 100% first column attributes 50% second column attributes →

Plug Type
1ETHERNET 10/100
2ETHERNET 10/100
3ETHERNET 10/100
4GIGABIT ETHERNET
5Reserved for RS232/422/485
6Reserved for CAN
7Reserved for CAN
8RS232
9RS232
10Reserved for RS232/422/485
11Reserved for RS232/422/485
12 USB
13 +24 VDC
14USB
15Power 2
16Bluetooth Antenna
17WI-FI Antenna

<newcolumn>

Plug Currently connected to
1SICK LMS-111
2Trimble AgGPS542
3Empty
4HoWLAN
5Empty
6Empty
7Empty
8Motorcontroller right
9Motorcontroller left
10Empty
11Empty
12Empty
13Power
14Empty
15Empty
16WI-FI Antenna
17Bluetooth Antenna

</columns>

Connector description

The connectors used at the FroboBox is the industrial connector standard M12.

RS232 (M12 a-coded - 8pins female connector)

(5)+(8)+(9) on block diagram.

There are no configuration jumpers for COM1 and COM2 since they only operate in RS-232 mode.

pin - 1 white+5V
pin - 2brown +12V
pin - 3green RXD COM1 J18-3 , COM2 J18-12
pin - 4yellowCTS COM1 J18-6 , COM2 J18-15
pin - 5grey GND COM1 J18-9 , COM2 J18-18
pin - 6pink RTS COM1 J18-4 , COM2 J18-13
pin - 7blue TXD COM1 J18-5 , COM2 J18-14
pin - 8red GND

RS232/422/485 (M12 a-coded - 8pins female connector)

(10)+(11) on block diagram.

Use CMOS Setup on the Versalogic mainboard to select between RS-232 4-wire, RS-422, and RS485 operating modes for COM3 and COM4. Jumper block V3 (see datasheet MEBX37-1.pdf for description) is used to enable the RS-422/485 termination resistor for COM3 and COM4. Jumper V3[1-2] enables the RS-422/485 termination resistor for COM3, and jumper V3[3-4] for COM4. The termination resistor should be enabled for RS-422 and the RS-485 endpoint station. It should be disabled for RS-232 and the RS-485 intermediate station.

pin - 1 white+5V
pin - 2brown +12V
pin - 3green RXD / RXD-COM3 J18-23 , COM4 J18-30
pin - 4yellowCTS / RXD+COM3 J18-24 , COM4 J18-31
pin - 5grey GND COM3 J18-22 , COM4 J18-29
pin - 6pink RTS / TXD+COM3 J18-20 , COM4 J18-27
pin - 7blue TXD / TXD-COM3 J18-21 , COM4 J18-28
pin - 8red GND

CAN (M12 a-coded - 8pins female connector - based on CANopen)

(6)+(7) on block diagram These ports utilizes a 5-Pin M12 CANopen shown below.

pin - 1brownCAN-Shield
pin - 2white+12V
pin - 3blue GND box header pin 5
pin - 4blackCAN-Highbox header pin 4
pin - 5grey CAN-Low box header pin 3

ETHERNET 10/100 (M12 d-coded - 4 pins female connector)

(1)+(2)+(3) on block diagram.

pin - 1yellowReceive-RJ-45 pin 6
pin - 2white Transmit-RJ-45 pin 3
pin - 3orangeReceive+ RJ-45 pin 2
pin - 4blue Transmit+RJ-45 pin 1

GIGABIT ETHERNET (M12 a-coded - 8 pins female connector)

(4) on block diagram.

pin - 1 orange-whiteTX_D1+RJ-45 pin 1
pin - 2orange TX_D1-RJ-45 pin 2
pin - 3green-whiteRX-D2+RJ-45 pin 3
pin - 4green RX D2-RJ-45 pin 6
pin - 5brown-whiteBI D4+RJ-45 pin 7
pin - 6brown BI D4-RJ-45 pin 8
pin - 7blue-white BI-D3-RJ-45 pin 5
pin - 8blue BI-D3+RJ-45 pin 4

USB

STECKER by Farnell

SCHUTZKAPPE by Farnell

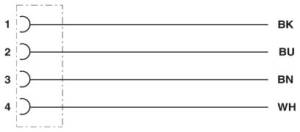

Power Connector

1: GND (black), 2:GND(blue), 3:VCC(brown),4:VCC(White)

pin - 1BlackGND
pin - 2Blue GND
pin - 3Brown+24 VCC
pin - 4White+24 VCC

Power connector - AUX/Display

Currently power connector.

pin - 1BlackGND
pin - 2Blue GND
pin - 3Brown+24 VCC
pin - 4White+24 VCC

Power Cable

pin - 1BlackNot connected
pin - 2Blue GND
pin - 3BrownNot connected
pin - 4White+24 VCC

Wifi/Bluetooth Antenna

The antenna for the Wifi and Bluetooth is identical. Looks like: TL-ANT2408CL from the company TP-Link. The antenna has a RP-SMA Male connection.

Download data sheet of the TL-ANT2408CL (194 KB)

RP SMA reverse female for panel connector: from Conrad

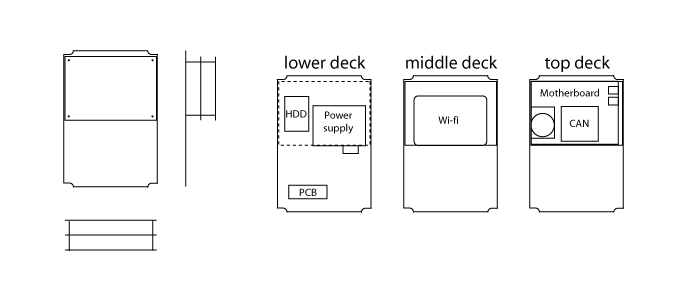

Scaffold

<note warning>Wrong! To be updated</note> The internal scaffold for the FroboBox consists of three aluminum plates separated by 35 mm spacers. The lower plate is cut in shape to fit exactly into the enclosure and the two top plates are cut in dimensions 150 x 215 mm to fit the motherboard. When mounting the motherboard it is important to align it to the edge to make room for the RJ-45 connections. Get printable drawings of Top deck, middle deck and lower deck (A3).

Wirering

<note important>Will be updated soon</note>

Component list

Component Part Link to buy Link to manufacturer PDF documentation Manual
Motherboard iEi Kino QM770iCp iEilink??
RAM Kingston SO-DIMM DDR3 4GB PC1066????
RS 232,422,485 Expansion Board
Harddrive Intel 40GB SSD SATA DustinIntel HarddiskX25V Manual
CAN adaptor ?? ?? ????
Power supplyM4-ATX, 250w output, 6v to 30v wide input Intelligent Automotive DC-DC Car PC Power SupplyMini-BoxM4-ATXManual
Ethernet/WiFiNetgear MBR624GUNetgearNetgearManual
BluetoothParani-UD100Sena - Paranidocman
EnclosureALUMINIUM 230X330X180MMFarnellRoseRoseBoxDatasheet
DisplaySuggestion…RS
8-pin RS connectorM12 a coded Female for (5)+(8)+(9)+(10)+(11)Phoenix8 Connector
8-pin Ethernet connector (G-bit)M12 a coded Female for (4)Phoenix8 Connector
5-pin CAN connectorM12 a coded Female for (6)+(7)Phoenix5 Connector
4-pin Ethernet connectorM12 a coded Female for (1)+(2)+(3)Phoenix4 Connector
USB connectorUSB Buccaneer panel for (12)+(14)RSUSB Connector
Sealing cappanel sealing cap for (12)+(14)RSSealing cap
RP SMA connectorWifi/Bluetooth antenna (16)+(17)Conrad
Wifi/Bluetooth antenna TP-Linkantenna
